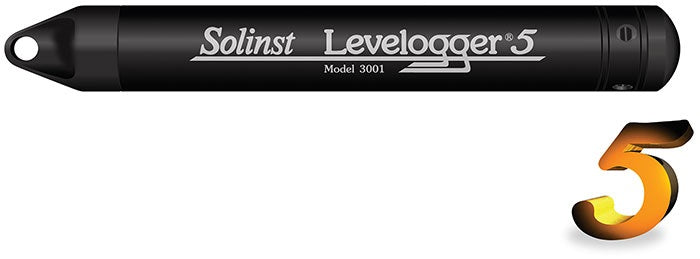

Features
• Records highly accurate groundwater and surface water level and temperature measurements
• It combines a robust Hastelloy pressure sensor, temperature detector, 10-year lithium battery datalogger
• 22 mm x 160 mm stainless steel housing
• Baked-on coating using polymerization technology protects the body against corrosion, abrasion and high temperatures
• Hastelloy sensor has excellent performance in harsh environments and can withstand 2 times overpressure without permanent damage
• Readings are stable in extreme pressure and temperature conditions
• Hastelloy sensor can withstand 2 times over-pressure without permanent damage
• Single-eye optical for easy cleaning and more reliable, faster communication
• Memory for 150,000 sets of readings
• Stronger, more robust design: double O-ring seals for increased leakage protection
• Better thermistor sensitivity: upgraded platinum RTD
Applications
• Aquifer characterization: pumping tests, slug tests, etc.
• Watershed, drainage basin and recharge monitoring
• Stream gauging, lake and reservoir management
• Harbor and tidal fluctuation measurement
• Wetlands and storm water run-off monitoring
• Water supply and tank level measurement
• Mine water and landfill leachate management
• Long-term water level monitoring in wells, surface water bodies and seawater environments
Part Number | Model | Full Scale (FS) | Accuracy | Resolution |
SO-114609 | M5 | 5 m | ± 0.3 cm | 0.001% FS |
SO-114610 | M10 | 10 m | ± 0.5 cm | 0.0006% FS |
SO-114611 | M20 | 20 m | ± 1 cm | 0.0006% FS |
SO-114612 | M30 | 30 m | ± 1.5 cm | 0.0006% FS |
SO-114613 | M100 | 100 m | ± 5 cm | 0.0006% FS |
SO-114614 | M200 | 200 m | ± 10 cm | 0.0006% FS |
