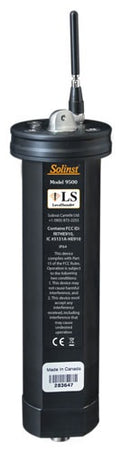

The LevelSender 5 is a simple, low cost system designed to wirelessly send data from Solinst® dataloggers in the field, via cellular communication, to multiple emails and an SMS recipient. You can receive data right on your smart device.

Features
• Sized to fit inside a standard 2" well casing
• Internal barometer for automatic water level compensation
• Connection for up to two dataloggers on each device
• Remote data sent via email, SMS messaging or FTP
• Database is automatically updated with each new data report
• Free LevelSender Software for full user control and data management
• Easy programming of independent datalogger recording
• Issue remote diagnostic commands via email from the Home Station
• Set high- or low-level alarm notifications
• Ready-to-go option with pre-programmed
• SIM card; simplified, more reliable service provider connection
• FTP (File Transfer Protocol) option for data transfer
• Extensive coverage with cellular communication
• Receive data on your smart device and PC
• Remotely monitor battery level and status with each report
• Power Supply: 3 x AA 1.5V replaceable lithium batteries
• Memory Capacity (Between Reports): Up to 40,000 LT logs, or 28,000 LTC logs
• Size: 2.5" x 9.375" (with antenna folded down)

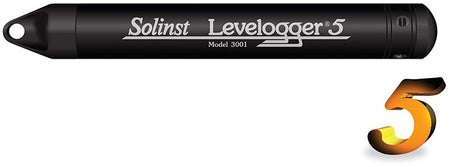

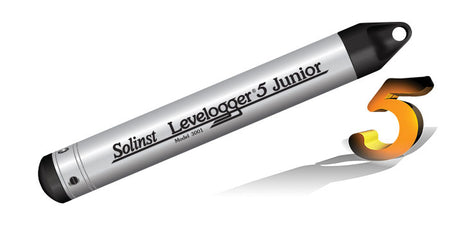

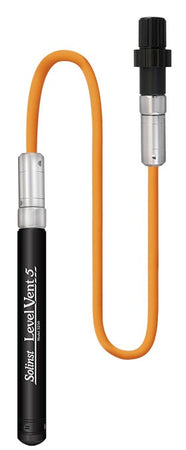

• Compatible Dataloggers: Levelogger® 5 Series dataloggers, LevelVent 5, as well as previous versions of the LevelVent and Levelogger® Edge Series dataloggers
• Internal Barometer Range: 30 kPa – 120 kPa
• Internal Barometer Accuracy: ±0.2 kPa (2 cm)

Part NumberDescription
SO-1159249500 LevelSender 5 Telemetry System - 4G c/w SIM Card, 2” Well Cap & Hanger Bracket
Model 9500 Communication Cables

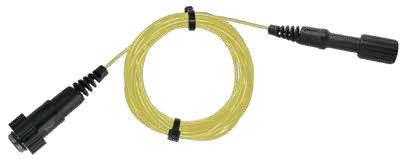

SO-1128679500 Reader Cable for the LevelSender (3ft)
SO-1153789500 USB-C Programming Cable for the LevelSender 5
Model 9500 Accessories

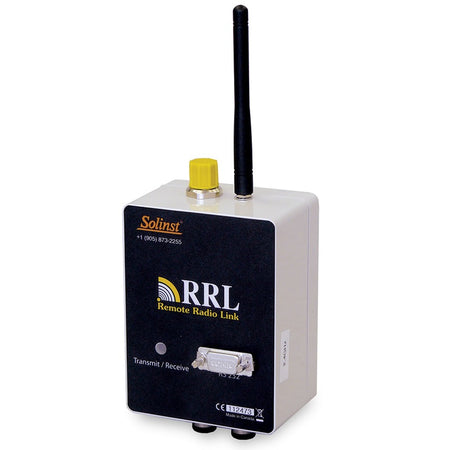

SO-1097009200 9500 Logger Connection Y-Splitter for RRL Gold and LevelSender
SO-1127643500 9500 Support Hanger Bracket (Spare) for the AquaVent and LevelSender

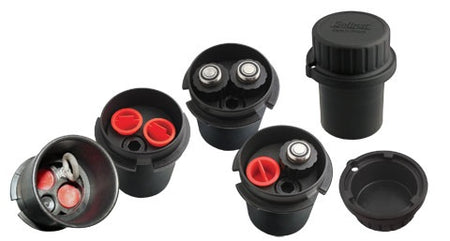

SO-1127673500 9500 Well Cap Assembly (2") for the AquaVent & LevelSender
SO-110235Well Cap Adaptor (4") for the Levelogger®
