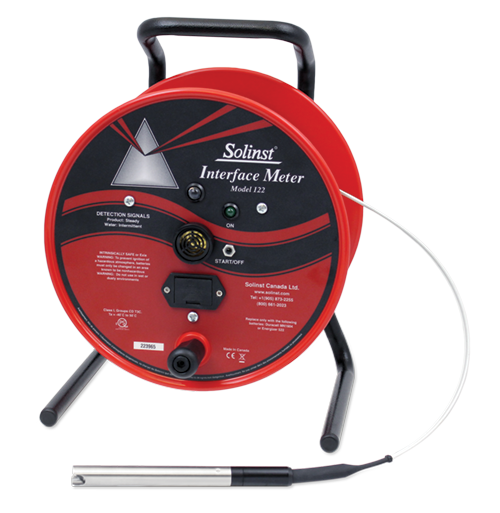

Features
• Oil/water interface meters give clear and accurate measurements of product level and thickness in wells and tanks
• Determination of both light (floating) non-aqueous phase liquids (LNAPL) and dense (sinking) non-aqueous phase liquids (DNAPL) is quick and easy
• Ideal to detect the presence, or absence, of a product (ex; hydrocarbons, diesel fuel, oil - fluids that have very low electrical conductivity)
• 3/8" width non-stretch PVDF laser marked flat tape marked each mm or 1/100 ft
• 5/8" P8 316 stainless steel probe pressure proof, up to 500 psi with a Hydex cone-shaped tip
• Electronic panel with audio and visual signals
• Infra-red refraction is used to detect liquids and conductivity to distinguish water
• “On/Off” switch
• Stable electronics with automatic circuitry testing
• Clear signals and high accuracy
• Sturdy free-standing reel with carrying handle
• 9V battery
• Supplied with model 101 tape guide
• Certified for use in hazardous locations, Class l, Div 1, Groups C&D (CSA Standards)
• ATEX certification under directive 94/-/EC, as II 3 G Ex ic IIB T4 Gc
• Carrying case sold separately
*Tape model in imperial (ft) also available
*Custom lengths to a maximum of 500 mm / 1650 ft also available
*LM3: meters & centimeters: with markings every mm
| Part Number | Tape Model | Tape Material | Probe/Tape | Tape Length | Probe Type |
| SO-114816 | Metric | PVDF Laser Marked Tape | P8/LM3 | 30 m | 5/8" Detachable Water Level Probe |
| SO-114811 | Metric | PVDF Laser Marked Tape | P8/LM3 | 60 m | 5/8" Detachable Water Level Probe |
| SO-114812 | Metric | PVDF Laser Marked Tape | P8/LM3 | 100 m | 5/8" Detachable Water Level Probe |
| SO-114820 | Metric | PVDF Laser Marked Tape | P8/LM3 | 150 m | 5/8" Detachable Water Level Probe |
| SO-114821 | Metric | PVDF Laser Marked Tape | P8/LM3 | 250 m | 5/8" Detachable Water Level Probe |
| SO-114822 | Metric | PVDF Laser Marked Tape | P8/LM3 | 300 m | 5/8" Detachable Water Level Probe |
| SO-102974 | Small Padded Nylon Carrying Case (For Meters With A Tape Length Of 30 m (100 ft), 60 m (200 ft) & 100 m (300 ft) | ||||
| SO-100109 | Medium Padded Nylon Carrying Case (For Meters With A Tape Length Of 150 m (500 ft), 250 m (750 ft) & 300 m (1000 ft) | ||||
