Applications
• Environmental monitoring
• Soil contamination detection
• VOCs in landfill
• IAQ measuring industrial volatiles
• Health & Safety
• Confined space entry
• First response (screening)
• Wing tank entry
• VOC leak detection
• Fumigation gases
• Fugitive emissions
• Medical gases in hospitals
• Fire and Arson investigation
Features
• Detection range: 0.1 - 5,000 ppm
• Lamp:
• 10.6 eV (standard)
• 10.0 eV and 11.7 eV (optional also available)
• Patented humidity resistance technology to 99% RH - no compensation needed
• Push-to-log data logging store up to 80,000 data points in up to 128 user selectable zones
• User selectable response factors for direct concentration readout
• Flashing LED & audible alarm
• Selectable vibrating alarm
• Factory calibration mode available
• Certifications: ATEX, IECEx, CSA - Intrinsically Safe
Standard Kit Includes

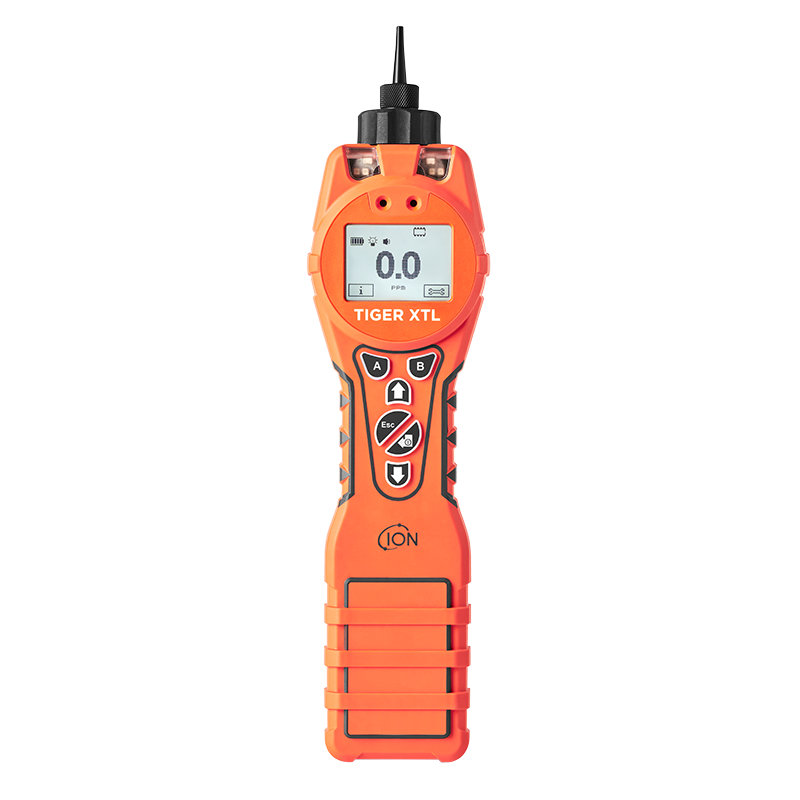

• Tiger XTL instrument with rubber boot
• PTFE filter disc (dust filter)
• PID lamp cleaning kit
• Removal tool MiniPID stack
• Li-ion rechargeable battery
• Battery Charger
• Mains adaptor
• USB cable
• Compact case
Premium Kit Includes
• Tiger XTL instrument with rubber boot
• Lanyard (wrist strap)
• PTFE filter disc (dust filter)
• Carbon zero filter assembly
• PID lamp cleaning kit
• Removal tool MiniPID stack
• Calibration adaptor
• USB cable
• Li-ion rechargeable battery
• Battery Charger
• Mains adaptor
• Explorer case
Part Number | Description | Detection Range | PID Lamp | Fence Electrode | Calibration Equipment |
IS-TXLLSLBMR-0000 | Tiger XTL With Standard Kit | 0.1 - 5,000 ppm | 10.6 eV | Electrode Stack Orange | • NLB-H1055100PA • NLB-414 or NLB-417 |
IS-TXLLSLBMP-0000 | Tiger XTL With Premium Kit | 0.1 - 5,000 ppm | 10.6 eV | Electrode Stack Orange | • NLB-H1055100PA • NLB-414 or NLB-417 |
*Other accessories also available
Accessories & Calibration Equipment | |
Part Number | Description |
IS-A-861632 | Premium PTFE Filters, 10/Pack |
NLB-H1055100PA | Calibration Gas 100 PPM Isobutylene In Air, 34 Liter Steel Cylinder With CGA 600 |
NLB-414 | 0.3 LPM Regulator With Gauge & Knob For Cylinders With CGA 600 |
NLB-417 | 0.5 LPM Regulator With Gauge & Knob For Cylinders With CGA 600 |
