Applications
• Confined space entry
• Pre-screening during refinery and plant maintenance
• Marine spill response
• Refinery down-stream monitoring
• Hazardous material response
• Total aromatic compounds (TACs)
• Detection at loading docks and barge operations
Features
• Available in two distinct variants: ppm and ppb
• Selectively detects benzene with benzene pre-filter tubes
• Detection range:
• Tiger Select ppm model: 0.1 - 20,000 ppm
(standard mode: 0.1 - 20,000 ppm, TAC mode: 0.01 - 20,000 ppm and tube mode: 0.001 - 200 ppm)
• Tiger ppb model: 0.001 - 20,000 ppm
(standard mode: 0.001 - 20,000 ppm TAC mode: 0.001 - 20,000 ppm and tube mode: 0.001 - 200 ppm)
• Three available modes to choose from: basic mode, advanced mode and ask mode
• Optional software upgrade from ppm to ppb
• Lamp: 10.0 eV
• A 10.6 eV lamp can easily be installed for the detection of a wide range of VOCs
• Patented humidity resistance technology to 99% RH – no compensation needed
• Push-to-log and multi-logging stores > 120,000 data points including date/time
• Internal gas table with over 700 VOCs and toxic compounds
• Flashing LEDs "amber" (low alarm) and "red" (high alarm)
• Audible sounder vibration on alarm
• Pre-programmed TWA & STEL alarm* (only available for ppb model)
• Factory calibration mode available
• Certifications: ATEX, IECEx, CSA - Intrinsically Safe
Kit Includes

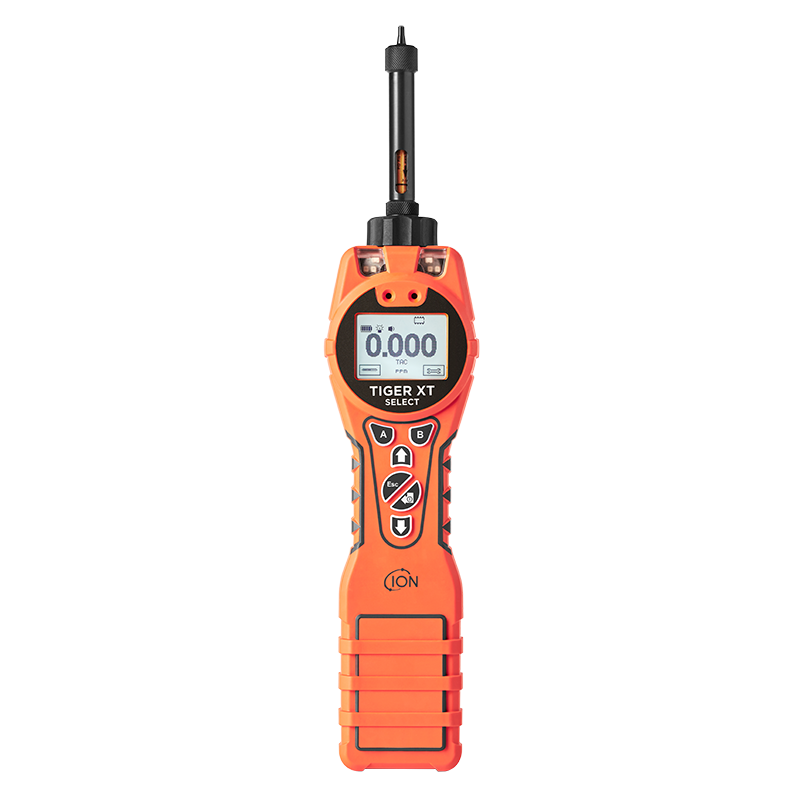

• Tiger XT Select instrument (PPM or PPB) with rubber boot
• Lanyard (wrist strap)
• Benzene pre-filter tube probe
• (10) Ion Science benzene pre-filter tubes
• Draeger benzene pre-filter tube opener
• Spare o-ring for tube holder
• PTFE filter disc (dust filter)
• Carbon zero filter assembly
• PID lamp cleaning kit
• Removal tool MiniPID stack
• Calibration adaptor
• USB cable
• Li-ion rechargeable battery
• Battery charger
• Mains adaptor
• Explorer case
* Used to calibrate for ppb measurements
** Used to calibrate for ppm measurements
Part Number | Description | Model | Detection Range | PID Lamp | Fence Electrode | Calibration Equipment |
IS-TXSXSLBMP-0517 | Tiger XT Select Benzene & TAC PPM/ H&S/Data Logging | PPM | 0.1 - 20,000 ppm | 10.0 eV | Electrode Stack White + Gold | • NLB-J1055100PA • NLB-Z11145PA • NLB-514 or NLB-517 |
IS-TXSXSLBMP-0519 | Tiger XT Select Benzene & TAC PPB/ H&S/Data Logging | PPB | 1 ppb - 20,000 ppm | 10.0 eV | Electrode Stack White + Gold | • NLB-J105510PA* • NLB-J1055100PA** • NLB-Z11145PA • NLB-514 or NLB-517 |
*Other accessories also available
Accessories & Calibration Equipment | |
Part Number | Description |
IS-A-861632 | Premium PTFE Filters 10/Pack |
NLB-H105510PA | Calibration Gas 10 PPM Isobutylene In Air, 103 Liter Aluminum Cylinder With CGA C-10 |
NLB-H1055100PA | Calibration Gas 100 PPM Isobutylene In Air, 103 Liter Aluminum Cylinder With CGA C-10 |
NLB-Z11145PA | Calibration Gas 5 PPM Benzene In Air, 58 Liter Aluminum Cyl. With CGA C-10 |
NLB-514 | 0.3 LPM Regulator With Gauge & Knob For Cylinders With CGA C-10 |
NLB-517 | 0.5 LPM Regulator With Gauge & Knob For Cylinders With CGA C-10 |
