PRC Passive Skimmers

Name: PRC Passive Skimmers
Brand: GEOTECH
SKU: GT-886650307
Availability: OutOfStock

SKU: GT-886650307

Brief Description:

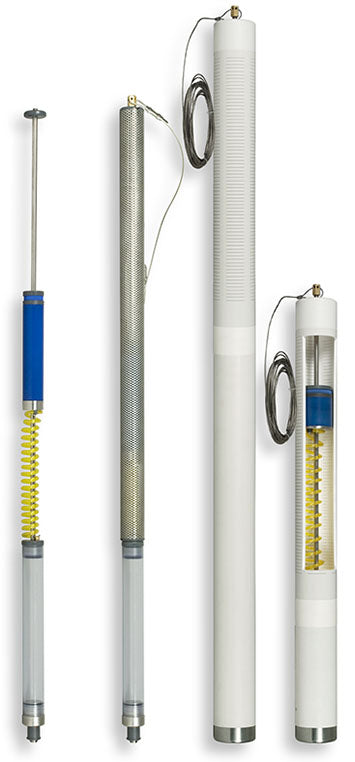

The Product Recovery Canister (PRC) is a passive skimmer designed to recover product-only (LNAPL) layers down to a sheen. The PRC features a floating intake that adjusts for groundwater fluctuations, a product canister for measuring recovered volumes, and a product drain valve designed to eliminate fluid splattering.

Model

Quantity:

- +

Add to Wishlist

Quantity must be 1 or more

View Quote

Features
• Floating oleophilic intake auto adjusts for water level changes
• Ideal for extreme environments and low recovery applications
• Configured for dedicated or portable installations
• Choice of floating intake mesh sizes

2" PRC System
• 12" effective buoy travel
• Oleophilic intake - 60 mesh* or 100 mesh**
- 60 mesh* oleophilic intake (*Ideal to recover slightly more viscous products)
- 100 mesh** oleophilic intake (**Ideal to recover gasoline and diesel)
• Transparent collection canister
• Product drain valve
• 25' of suspension cable with adjustable clamp
• Optional protective SS screen

4" PRC System
• 16" effective buoy travel
• Oleophilic intake - 60 mesh* or 100 mesh**
- 60 mesh* oleophilic intake (*Ideal to recover slightly more viscous products)
- 100 mesh** oleophilic intake (**Ideal to recover gasoline and diesel)
• White collection canister
• Product drain valve
• 25' of suspension cable with adjustable clamp
• Slotted protective PVC screen

2'' PRC Passive Skimmer 100 Mesh - Ideal To Recover Gasoline & Diesel
Part Number	GT-886650307	GT-86650303	GT-86650304	GT-86650301	GT-86650311	GT-86650308	GT-86650309	GT-86650310
Description	2'' PRC Passive Skimmer 100 Mesh With 0.125 L Canister	2'' PRC Passive Skimmer 100 Mesh With 0.25 L Canister	2'' PRC Passive Skimmer 100 Mesh With 0.50 L Canister	2'' PRC Passive Skimmer 100 Mesh With 1 L Canister	2'' PRC Passive Skimmer 100 Mesh With 0.125 L Canister & Stainless Steel Screen	2'' PRC Passive Skimmer 100 Mesh With 0.25 L Canister & Stainless Steel Screen	2'' PRC Passive Skimmer 100 Mesh With 0.50 L Canister & Stainless Steel Screen	2'' PRC Passive Skimmer 100 Mesh With 1 L Canister & Stainless Steel Screen
Dimensions	43.5'' L x 1.75'' O.D.	49.0'' L x 1.75'' O.D.	59.5'' L x 1.75'' O.D.	82.5'' L x 1.75'' O.D.	43.5'' L x 1.88'' O.D.	49.0'' L x 1.88'' O.D.	59.5'' L x 1.88'' O.D.	82.5'' L x 1.88'' O.D.
Empty Weight	2.9 lbs	3.1 lbs	3.5 lbs	5.2 lbs	4.3 lbs	4.5 lbs	4.9 lbs	6.6 lbs
Full Weight	3.1 lbs	3.5 lbs	4.3 lbs	6.7 lbs	4.5 lbs	4.9 lbs	5.7 lbs	8.1 lbs
Capacity	0.035 gal.	0.07 gal.	0.13 gal.	0.26 gal.	0.035 gal.	0.07 gal.	0.13 gal.	0.26 gal.
Min. Water Depth Required	23.5''	29.0''	39.5''	62.0''	23.5''	29.0''	39.5''	62.0''
Materials (All)	Stainless Steel, Brass, & Engineered Plastics
Effective Buoy Travel	12''
Mesh Size	100 mesh* oleophilic intake (*Ideal to recover gasoline and diesel)
Collection Canister	Transparent
Product Drain Valve	Yes
Includes	25 ft of suspension cable with adjustable clamp

4'' PRC Passive Skimmer 100 Mesh - Ideal To Recover Gasoline & Diesel
Part Number	GT-86650302	GT-86650305	GT-86650306
Description	4'' PRC Passive Skimmer 100 Mesh With 1 L Canister & Slotted Protective PVC Screen	4'' PRC Passive Skimmer 100 Mesh With 3 L Canister & Slotted Protective PVC Screen	4'' PRC Passive Skimmer 100 Mesh With 4 L Canister & Slotted Protective PVC Screen
Dimensions	37.0'' L x 3.5'' O.D.	53.0'' L x 3.5'' O.D.	60.0'' L x 3.5'' O.D.
Empty Weight	8 lbs	15 lbs	16 lbs
Full Weight	9.5 lbs	19 lbs	25.5 lbs
Capacity	0.26 gal.	0.8 gal.	0.06 gal.
Min. Water Depth Required	18.5''	35.0''	43.0''
Materials (All)	Stainless Steel, Brass, & Engineered Plastics
Effective Buoy Travel	16"
Mesh Size	100 mesh* oleophilic intake (*Ideal to recover gasoline and diesel)
Collection Canister	White
Product Drain Valve	Yes
Includes	25 ft of suspension cable with adjustable clamp

2'' PRC Passive Skimmer 60 Mesh - Ideal To Recover Slightly More Viscous Products
Part Number	GT-86650318	GT-86650316	GT-86650317	GT-86650315	GT-86650322	GT-86650319	GT-86650320	GT-86650321
Description	2'' PRC Passive Skimmer 60 Mesh With 0.125 L Canister	2'' PRC Passive Skimmer 60 Mesh With 0.25 L Canister	2'' PRC Passive Skimmer 60 Mesh With 0.50 L Canister	2'' PRC Passive Skimmer 60 Mesh With 1 L Canister	2'' PRC Passive Skimmer 60 Mesh With 0.125 L Canister & Stainless Steel Screen	2'' PRC Passive Skimmer 60 Mesh With 0.25 L Canister & Stainless Steel Screen	2'' PRC Passive Skimmer 60 Mesh With 0.50 L Canister & Stainless Steel Screen	2'' PRC Passive Skimmer 60 Mesh With 1 L Canister & Stainless Steel Screen
Dimensions	43.5'' L x 1.75'' O.D.	49.0'' L x 1.75'' O.D.	59.5'' L x 1.75'' O.D.	82.5'' L x 1.75'' O.D.	43.5'' L x 1.88'' O.D.	49.0'' L x 1.88'' O.D	59.5'' L x 1.88'' O.D.	82.5'' L x 1.88'' O.D.
Empty Weight	2.9 lbs	3.1 lbs	3.5 lbs	5.2 lbs	4.3 lbs	4.5 lbs	4.9 lbs	6.6 lbs
Full Weight	3.1 lbs	3.5 lbs	4.3 lbs	6.7 lbs	4.5 lbs	4.9 lbs	5.7 lbs	8.1 lbs
Capacity	0.035 gal.	0.07 gal.	0.13 gal.	0.26 gal.	0.035 gal.	0.07 gal.	0.13 gal.	0.26 gal.
Min. Water Depth Required	23.5''	29.0''	39.5''	62.0''	23.5''	29.0''	39.5''	62.0''
Materials (All)	Stainless Steel, Brass, & Engineered Plastics
Effective Buoy Travel	12"
Mesh Size	60 mesh* oleophilic intake (*Ideal to recover slightly more viscous products)
Collection Canister	Transparent
Product Drain Valve	Yes
Includes	25 ft of suspension cable with adjustable clamp

4'' PRC Passive Skimmer 60 Mesh - Ideal To Recover Slightly More Viscous Products
Part Number	GT-86650312	GT-86650313	GT-86650314
Description	4'' PRC Passive Skimmer 60 Mesh With 1 L Canister & Slotted Protective PVC Screen	4'' PRC Passive Skimmer 60 Mesh With 3 L Canister & Slotted Protective PVC Screen	4'' PRC Passive Skimmer 60 Mesh With 4 L Canister & Slotted Protective PVC Screen
Dimensions	37.0'' L x 3.5'' O.D.	53.0'' L x 3.5'' O.D.	60.0'' L x 3.5'' O.D.
Empty Weight	8 lbs	15 lbs	16 lbs
Full Weight	9.5 lbs	19 lbs	25.5 lbs
Capacity	0.26 gal.	0.8 gal.	0.06 gal.
Min. Water Depth Required	18.5''	35.0''	43.0''
Materials (All)	Stainless Steel, Brass, & Engineered Plastics
Effective Buoy Travel	16"
Mesh Size	60 mesh* oleophilic intake (*Ideal to recover slightly more viscous products)
Collection Canister	White
Product Drain Valve	Yes
Includes	25 ft of suspension cable with adjustable clamp
