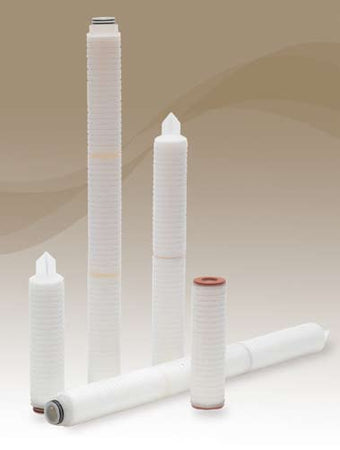

Specifications
• Cost-effective Polyethersulfone membrane filter for high purity
• Ideal for water grade filter or high purity applications where absolute retention is essential at an economical cost
• Absolute rated membranes from 0.03 to 1.0 microns
• High surface area for maximum throughput and long service life
• Constructed of FDA listed materials and meets USP Class VI Biological Test for plastics
• 6 sq. ft. of media (non-flushed)
Applications
• RO Pre/Post Filtration
• Food & Beverage
• DI Water
• Bottled Water
• Plating Solutions
• Microelectronics
• Specialty Chemicals
• Process Water
• Water & Wastewater
• Cosmetics
| Pore Sizes | 0.03, 0.1, 0.2, 0.45, 0.65, 1.0 microns absolute retention |
| Nominal Lengths | 9.75" (24.7 cm), 10" (25.4 cm), 20" (50.8 cm), 30" (76.2 cm), 40" (101.6 cm) |
| Outside Diameter | 2.67" (6.78 cm) |
| Inside Diameter | 1.0" (2.54 cm) |
| Media Surface Area | 6.0 sq.ft. (0.56 m2) per 10 inches filter length |
| Gaskets/O-rings | Silicone, Buna N, EPR, Viton, Teflon Encapsulated Viton (o-rings only) |
| Materials of Construction | Filter Media: Polyethersulfone Outer Cage / Core / End Caps: Polypropylene |
| Maximum Operating Temperature | 176°F ( 80°C) |
| Recommended Change-out Differential Pressure | 35 psid (2.4 bar) |
| Maximum Differential (Collapse) Pressure | 75 psid @ 70ºF (5.2 bar @21ºC), 40 psid @176ºF (2.8 bar @ 80ºC) |
| Sanitization and Sterilization | Hot water at 175°F (80°C) at 5 psid for 30 minutes In-line steam at 257°F (125°C) @ 1 psid (0.7 bar) for 30 minutes Autoclavable at 257°F (125°C) for 30 minutes |
| FDA and USP Compliance | All materials comply with the requirements of Food and Drug Administration Title 21 of The Code of Federal Regulations 174.5, 177.1520 and 177.1630. All components meet current USP Class VI biological tests for plastics |
