The FreeGlide® works be extending a sample collection cup into the powder flow. After sampling the cup is returned to the FreeGlide® and is inverted, this drops the sample into a bag or bottle.

At the heart of the system is the special, patented, flexible Diaphragm. The Diaphragm separates the dusty product area with the mechanical area at the rear of the sampler. The Diaphragm ensures that the device will not stick during use.

The FreeGlide® is available with either manual or automated pneumatic operation and in a range of different sizes.

Features
• Ideal for pharmaceutical and food applications
• The sample is collected in a cup and so is not physically altered by the sampling process
• The full bore of the pipe is available for powder flow in between taking samples
• Quick and easy to strip down and clean between batches
• Over 1000 FreeGlide® samplers are in use in food and pharmaceutical factories around the world

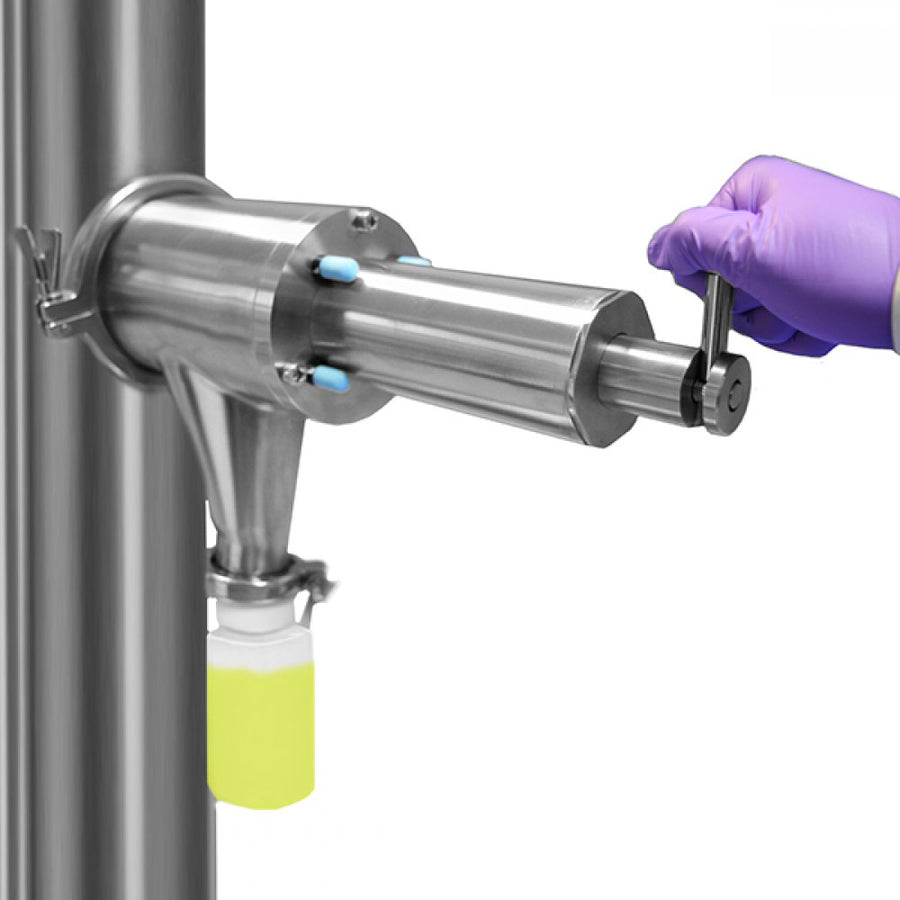

Manually Operated FreeGlide®
• 50ml sample cup size
• 316L stainless steel product contact parts
• 304 stainless steel non-product contact parts
• Silicone Diaphragm & End Plug (can be EPDM or Viton at no extra charge)
• Front Boss for welding to customer’s pipe (welding & installation by others)
• Internal finish 0.5µm Ra
• External finish 1.0 µm Ra
• Non ATEX
• Maximum product temperature 60°C (140°F)

Pneumatic Actuated FreeGlide®
• 50ml sample cup size
• 316L stainless steel product contact parts
• 304 stainless steel non-product contact parts
• Silicone Diaphragm & End Plug (can be EPDM or Viton at no extra charge)
• Front Boss for welding to customer’s pipe (welding & installation by others)
• Internal finish 0.5µm Ra
• External finish 1.0 µm Ra
• Pneumatic Actuator requires air at 6barg
• Four limit switches (24v DC) to detect cup position
• Controls to be supplied by others
• Non ATEX
• Maximum product temperature 60°C (140°F)

Part NumberDescription
SS-FG-1000MManual Operation - for use with Down Pipes larger than 100mm diameter
SS-FG-1500MManual Operation - for use with Down Pipes larger than 150mm diameter
SS-FG-2000MManual Operation - for use with Down Pipes larger than 200mm diameter
SS-FG-3000MManual Operation - for use with Down Pipes larger than 230mm diameter
SS-FG-1000AActuated Operation - for use with Down Pipes larger than 100mm diameter
SS-FG-1500AActuated Operation - for use with Down Pipes larger than 150mm diameter
SS-FG-2000AActuated Operation - for use with Down Pipes larger than 200mm diameter
SS-FG-3000AActuated Operation - for use with Down Pipes larger than 230mm diameter
