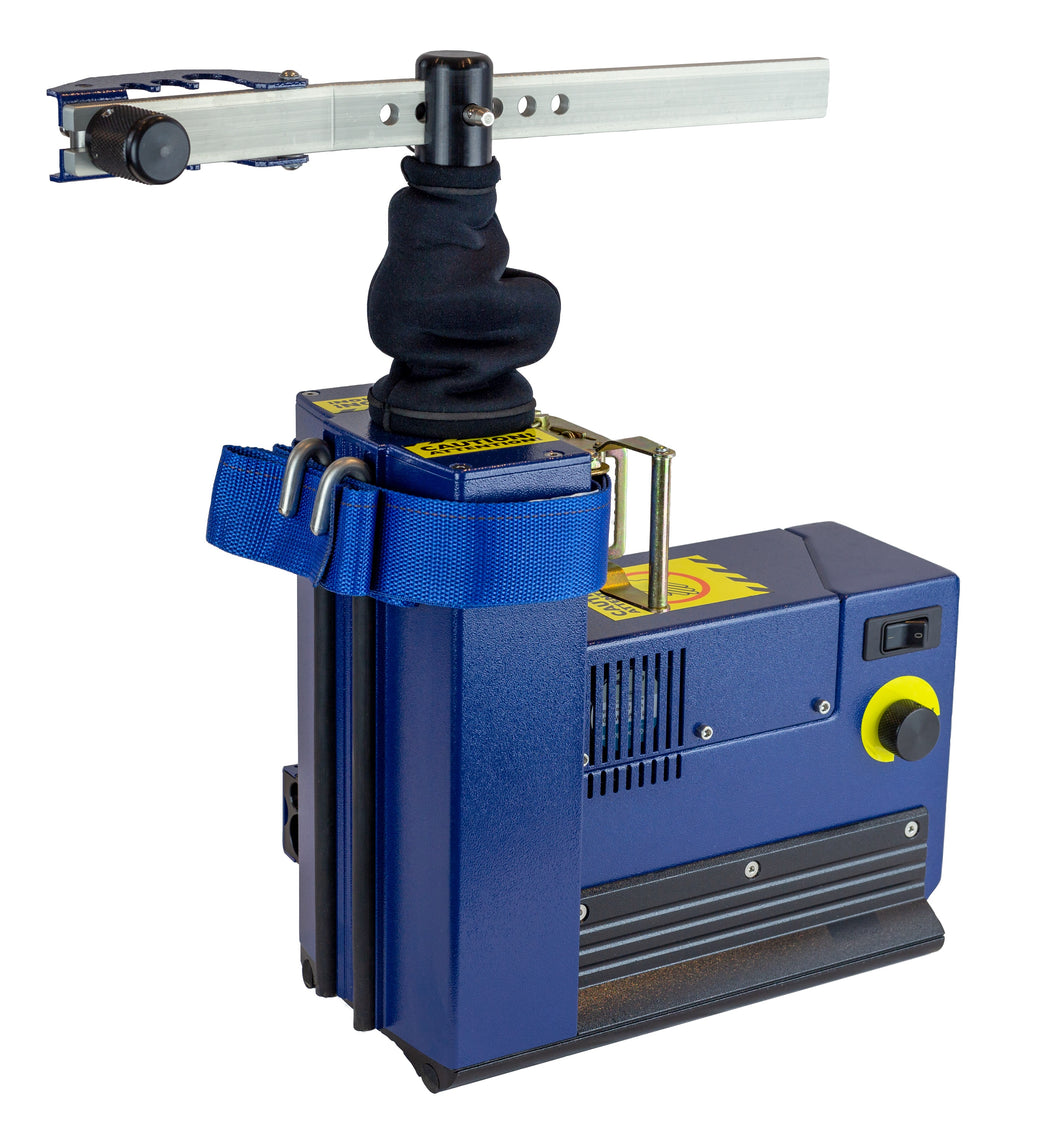

The Hydrolift is a portable, electrically operated device that is used to automate the operation of the Waterra Pump System. Great for use when developing monitoring wells. It is designed to be used in moderate to extreme pumping requirements (Low, Standard and High Flow).

Features
•  Ideal for purging and sampling 2" diameter monitoring wells up to 200 ft (60 m) deep
•  Optimized to operate with the Standard Flow System up to its maximum effective depth and will operate with the High Flow System up to a depth of 150 ft (45 m)
•  Suitable for use with Low, Standard and High Flow Waterra Pumping Systems
•  Supports the Waterra tubing and also anchors the discharge end of the tubing facilitating sample collection
•  Fully adjustable and will adapt to almost any size casing or protective well casing and can also be used with flush grade well completions
•  Hinged tubing clamp
•  Reduces fatigue that one may experience when required to purge large volumes from wells

*Tubing & footvalves sold separately

Part NumberDescriptionElectric MotorActuator StrokeRequired Power SourceDimensionsWeight
WA-WHLP-2Hydrolift-2 Pump110V, 6 A
¾ Horsepower (560 Watts)

4" (10 cm)

0-140 cycles/min

1000 Watt Generator15" L x 7" W x 20" H38 lbs
