All colors are bright and vivid. They can be detected visually in clear, deionized water in the range of 100 parts per billion (ppb) of active ingredient, depending on local conditions.
Features
• All colors are bright and vivid. They can be detected visually in clear, deionized water in the range of 100 parts per billion (ppb) of active ingredient, depending on local conditions.
• Choice of color should be based on the contrast to the background of the water body. For instance, red offers greater contrast to heavy concentrations of green algae.
• Red, orange, and yellow-green, because of their fluorescent nature may afford greater apparent contrast than non-fluorescent blue
• Fluorescent dyes also may be detected visually with a simple hand-held laboratory black light (U.V.) at significantly lower levels - in the range of 10 ppb in ideal conditions.
• Blue is frequently used for decorative effects, evaluation of household systems, and generally where blue color may be more acceptable to public view.
• Red, orange and yellow/green are sometimes used jointly in dual tracing studies - both visually and fluorometric analysis.
• Some information on the final chart below (resistance to absorption on suspended matter, sunlight resistance and environmental suitability) is also relevant to visual detection at low dye usage levels.
• Tablets: Dissolve in 5 - 8 Minutes
• Certification: NSF - Std 60
Part Number | Model | Color | Application | Strong Visual (1 ppm) | Packaging |
BD-101100 | Tablets | FLT Industrial Red | Easy To Handle | 1 Tablet - 60 Gallons | 200 Tablets/Bottle |
BD-101101 | Tablets | Fluorescent Yellow / Green | Quick To Dissolve | 1 Tablet - 60 Gallons | 200 Tablets/Bottle |
BD-101102 | Tablets | Standard Blue | Storm Lines | 1 Tablet - 20 Gallons | 200 Tablets/Bottle |
BD-101103 | Tablets | Fluorescent FWT Red | Cooling & Plumbing Systems | 1 Tablet - 60 Gallons | 200 Tablets/Bottle |
BD-101105 | Tablets | FLT Blue | Plumbing Systems | 1 Tablet - 20 Gallons | 200 Tablets/Bottle |
BD-101106 | Tablets | Fluorescent FLT Orange | Sewer Lines | 1 Tablet - 35 Gallons | 200 Tablets/Bottle |

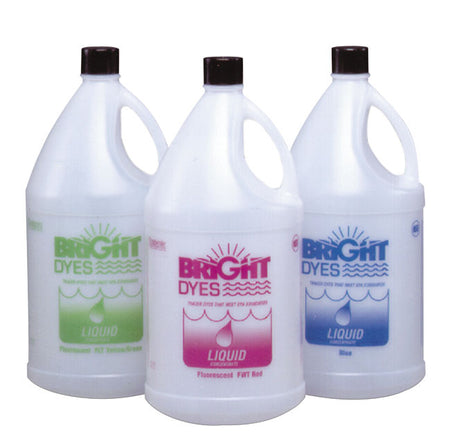

BD-106000-01P | Liquid | Industrial Red | Recommended When Metering Of Input Is Required | 1 Pint - 12,500 Gallons | Pint |
BD-106000-01G | Liquid | Industrial Red | Recommended When Metering Of Input Is Required | 1 Pint - 12,500 Gallons | Gallon |
BD-106001-01P | Liquid | Fluorescent Yellow / Green | Flow, Dilution, Dispersion Rate Studies | 1 Pint - 12,500 Gallons | Pint |
BD-106001-01G | Liquid | Fluorescent Yellow / Green | Flow, Dilution, Dispersion Rate Studies | 1 Pint - 12,500 Gallons | Gallon |
BD-106002-01P | Liquid | Standard Blue | Pipeline Hydro Testing | 1 Pint - 12,500 Gallons | Pint |
BD-106002-01G | Liquid | Standard Blue | Pipeline Hydro Testing | 1 Pint - 12,500 Gallons | Gallon |
BD-106005-01P | Liquid | FLT Blue | Trace Cross Connections | 1 Pint - 12,500 Gallons | Pint |
BD-106005-01G | Liquid | FLT Blue | Trace Cross Connections | 1 Pint - 12,500 Gallons | Gallon |
BD-106006-01P | Liquid | Fluorescent FLT Orange | Detect Illegal Sewer Connections | 1 Pint - 4,000 Gallons | Pint |
BD-106006-01G | Liquid | Fluorescent FLT Orange | Detect Illegal Sewer Connections | 1 Pint - 4,000 Gallons | Gallon |
BD-106023-01P | Liquid | FWT Red 25 | Septic Inspections | 1 Pint - 3,125 Gallons | Pint |
BD-106023-01G | Liquid | FWT Red 25 | Septic Inspections | 1 Pint - 3,125 Gallons | Gallon |
BD-106053-01P | Liquid | FWT Red 50 | Detect Leaks In Sewage Systems | 1 Pint - 6,250 Gallons | Pint |
BD-106053-01G | Liquid | FWT Red 50 | Detect Leaks In Sewage Systems | 1 Pint - 6,250 Gallons | Gallon |
BD-106203-01P | Liquid | FWT Red 200 | Fluoremetric Dye Test | 1 Pint - 25,500 Gallons | Pint |
BD-106203-01G | Liquid | FWT Red 200 | Fluoremetric Dye Test | 1 Pint - 25,500 Gallons | Gallon |
BD-105000 | Powder | Industrial | Recommended For Very Large Applications Where Liquid Is Undesirable | 1 lb - 120,000 Gallons | 1 lb Plastic Container |
BD-105001 | Powder | FLT Yellow / Green | Cooling Towers | 1 lb - 120,000 Gallons | 1 lb Plastic Container |
BD-105002 | Powder | Non-Fluorescent Standard Blue | Large Closed - Loop Systems | 1 lb - 120,000 Gallons | 1 lb Plastic Container |
BD-105005 | Powder | Non-Fluorescent FLT Blue | Lakes, Rivers & Ponds | 1 lb - 120,000 Gallons | 1 lb Plastic Container |
BD-105006 | Powder | Non-Fluorescent FLT Orange | - | 1 lb - 60,400 Gallons | 1 lb Plastic Container |
BD-105403 | Powder | Fluorescent FWT Red | Power Plant Piping | 1 lb - 60,400 Gallons | 1 lb Plastic Container |
