BEACON™ 110
Wall Mount Controller
Applications
Petrochemical plants, refineries, water & wastewater treatment plants, pulp & paper mills, gas, telephone, & electric utilities, parking garages, manufacturing facilities, steel, automotive, HVAC
Features
• Low cost versatile solution
• Compact, weatherproof, NEMA 4X enclosure
• 115/220 V AC or 24 V DC operation
• Long life sensors (2+ years typical)

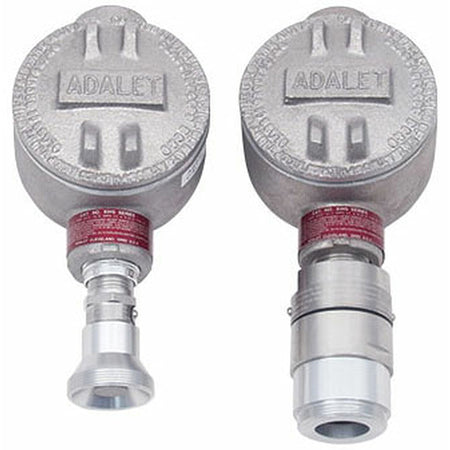

• Accepts RKI LEL/O2/H2S/CO direct connect sensors
• Accepts any 4 - 20 mA transmitter
• Audible alarm with reset button
• Two programmable alarm levels
• Built-in trouble alarm with relay
• Relay rating 10 amps, form C
• Provides 4 - 20 mA output
• Height: 8.5" (216 mm)
• Width: 7.0" (178 mm)
• Depth: 4.3" (109 mm)
Refer to detector assembly S-Series, M2 Series or call for more information.
Four channel wall mount controller BEACONTM 410 model also available.
Wall Mount Controller
Applications
Petrochemical plants, refineries, water & wastewater treatment plants, pulp & paper mills, gas, telephone, & electric utilities, parking garages, manufacturing facilities, steel, automotive, HVAC
Features
• Low cost versatile solution
• Compact, weatherproof, NEMA 4X enclosure
• 115/220 V AC or 24 V DC operation
• Long life sensors (2+ years typical)
• Accepts RKI LEL/O2/H2S/CO direct connect sensors
• Accepts any 4 - 20 mA transmitter
• Audible alarm with reset button
• Two programmable alarm levels
• Built-in trouble alarm with relay
• Relay rating 10 amps, form C
• Provides 4 - 20 mA output
• Height: 8.5" (216 mm)
• Width: 7.0" (178 mm)
• Depth: 4.3" (109 mm)
| Partial List Of Detectable Gases | |
| Ammonia (NH3) | 0 - 75.0 ppm |
| Arsine (AsH3) | 0 - 0.20 ppm |
| Boron Trichloride (BCl3) | 0 - 15.0 ppm |
| Carbon Dioxide (CO2) | 0 - 1.0% |
| Carbon Monoxide (CO) | 0 - 300 ppm |
| Chlorine (Cl2) | 0 - 3.0 ppm |
| Chlorine Dioxide (ClO2) | 0 - 1.00 ppm |
| Chlorine Trifluoride (ClF3) | 0 - 1.00 ppm |
| Combustibles | 0 -100% LEL |
| Diborane (B2H6) | 0 - 30.0 ppm |
| Fluorine (F2) | 0 - 6.0 ppm |
| Hydrogen (H2) | 0 - 2,000 ppm |
| Hydrogen Chloride (HCl) | 0 - 15.0 ppm |
| Hydrogen Fluoride (HF) | 0 - 9.0 ppm |
| Hydrogen Sulfide (H2S) | 0 - 100.0 ppm |
| Nitric Oxide (NO) | 0 - 100.0 ppm |
| Nitrogen Dioxide (NO2) | 0 - 15.0 ppm |
| Nitrogen Trifluoride (NF3) | 0 - 30.0 ppm |
| Oxygen (O2) | 0 - 25.0% |
| Ozone (O3) | 0 - 1.0 ppm |
| Phosphine (PH3) | 0 - 1.0 ppm |
| Silane (SiH4) | 0 - 15.0 ppm |
| Sulfur Dioxide (SO2) | 0 - 30.0 ppm |
Refer to detector assembly S-Series, M2 Series or call for more information.
Four channel wall mount controller BEACONTM 410 model also available.
Similar Products
Wastewater Gas Mo...

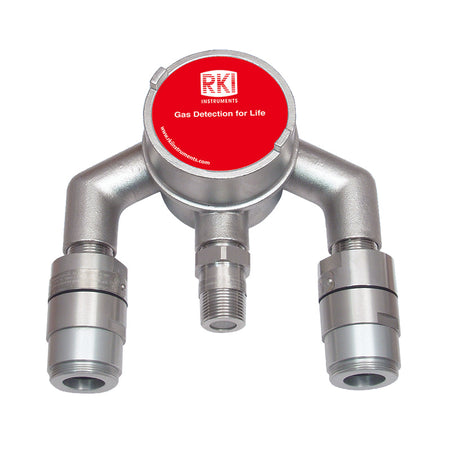

SKU: Wastewater Gas Monitoring system Explosion Proof Tri-Sensor Head
