Excellent for groundwater remediation & other applications!
Applies To All Water Treatment Containers & Drums | |||||
Drum Size | 5 gal. (Plastic) | 10 gal. (Plastic) | 25 gal. (Plastic) | 55 gal. (Plastic) | 55 gal. (Metal) |
Industrial Applications | 2.52 gpm @ 3 gpm/ft sq. | 3.69 gpm @ 3 gpm/ft sq. | 6.06 gpm @ 3 gpm/ft sq. | 10 gpm @ 3.62 gpm/ft sq. | 10 gpm @ 3.62 gpm/ft sq. |
Commercial Water Applications | 4.20 gpm @ 5 gpm/ft sq. | 6.15 gpm @ 5 gpm/ft sq. | 10.1 gpm @ 5 gpm/ft sq. | 12 gpm @ 4.35 gpm/ft sq. | 12 gpm @ 4.35 gpm/ft sq. |
Residence Time | 2.38 min. @ 2.5 GPM | 2.81 min. @ 3.7 GPM | 4.17 min. @ 6 GPM | 4.50 min. @ 10 GPM | 4.50 min. @ 10 GPM |
Inlet & Outlet | 3/4″ FNPT | 1″ FNPT | 1 1/4″ FNPT | 1 /2″ FNPT | 2″ FNPT |

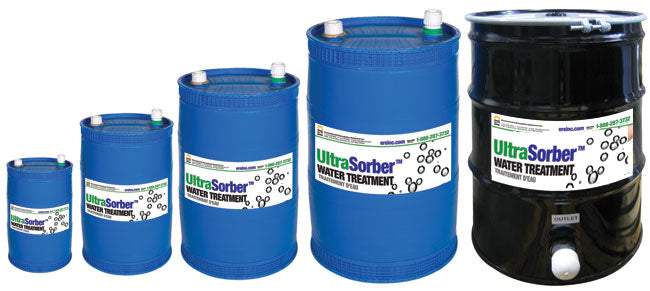

UltraSorber-AMMO™, Ammonia Removal Media: Zeozorb | |||||
Part Number | 90-014-5P | 90-014-10P | 90-014-25P | 90-014-55P | 90-014-55M |
Drum Size | 5 Gallon | 10 Gallon | 25 Gallon | 55 Gallon | 55 Gallon |
Drum Material | Plastic | Plastic | Plastic | Plastic | Metal |
Bulk Density (lbs/cf) | 50 | 50 | 50 | 50 | 50 |
Mesh Size | 8 x 20 | 8 x 20 | 8 x 20 | 8 x 20 | 8 x 20 |
Approx. Media Weight (lbs) | 20 | 50 | 150 | 300 | 300 |
Flow Rate (gpm) | 2.5 | 3.7 | 6 | 10 | 10 |
Max. Pressure (psi) | 1 | 1 | 1 | 8 | 8 |
