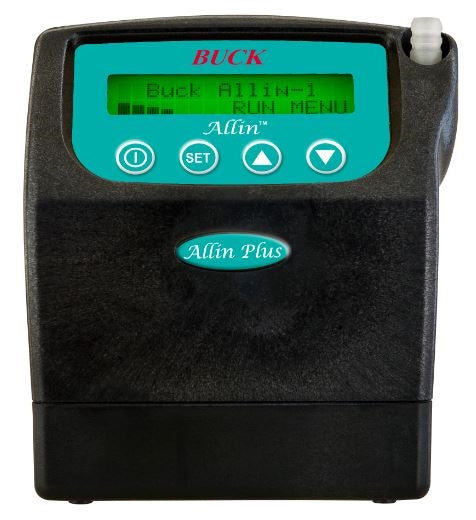

The Buck Allin™ & Buck Allin™ Plus series is a personal air sampler suitable for use in locations where flammable gases, vapors, dust, fibers or flying’s are present. The purpose of this pump is to draw air contaminants in through a sampling media such as 25 mm and 37 mm filter cassettes, bubble impingers, long-duration color detector tubes; to gauge personnel exposure to gases, vapors, particulates, aerosols, etc. It is capable of delivering up to 5.0 LPM. Low flows from 5 - 799 cc/min can be obtained using the optional Low Flow Holder.
Features
• Flow rate:
Buck Allin™-1 & Buck Allin™ Plus-1: 0.1 - 0.6 LPM (total)
5 - 99 cc/min with optional Adjustable Universal Low Flow Holder (APB-109030)
Buck Allin™-5 & Buck Allin™ Plus-5: 0.8 - 5.0 LPM (total)
5 - 799 cc/min with optional Adjustable Universal Low Flow Holder (APB-109030)
Buck Allin™-12 & Buck Allin™ Plus-12: 3.0 -12.0 LPM (total)
50 - 2999 cc/min with optional Adjustable Universal Low Flow Holder (APB-109030)
• Buck Allin™ Plus models are capable of data logging and can be programmed for multiple "Start/Stop" and duration sampling
• Buck Allin™ Plus models allows temperature and barometric pressure compensation in STP mode
• Steel fiber filled Lexan, antistatic, and RFI/EMI-shielded case
• Exclusive electronic circuit board for constant flow control
• "Auto-Restart" within one minute of a flow fault
• High backpressure compensation up to 50" of w.c. @ 2 LPM
• Flow compensation for filter plugging and battery voltage
• Key pad lock system
• Stainless steel belt clip with built-in tripod connector
• Rechargeable NiMH battery pack
• Certifications: UL 913 & CAN/CSA-C22.2 Intrinsically Safe, suitable for use in Class I, II, III, Div 1 Groups A-G, T3 Hazardous Locations
*230V also available
Part Number | Model | Flow Rate (Total) | Power Source | Includes |
APB-905000 | Buck Allin™-1 Starter Kit | 0.1 - 0.6 LPM | 120V | • Buck Allin™-1 pump • 3 ft of vinyl hose • Luer hose adapter • Shirt/hose clip • Single pack NiMH battery • Standard 120V charger • User manual |
APB-905050 | Buck Allin™-1 5-Pump Kit | 0.1 - 0.6 LPM | 120V | • (5) Buck Allin™-1 pumps • (5) Pieces of 3 ft of vinyl hose • (5) Luer hose adapters • (5) Shirt/hose clips • (5) Single pack NiMH batteries • Standard 110-240V smart charger kit • (2) User manuals • Carrying case |
APB-905200 | Buck Allin™-5 Starter Kit | 0.8 - 5.0 LPM | 120V | • Buck Allin™-5 pump • 3 ft of vinyl hose • Luer hose adapter • Shirt/hose clip • Single pack NiMH battery • Standard 120V charger • User manual |
APB-905250 | Buck Allin™-5 5-Pump Kit | 0.8 - 5.0 LPM | 120V | • (5) Buck Allin™-5 pumps • (5) Pieces of 3 ft of vinyl hose • (5) Luer hose adapters • (5) Shirt/hose clips • (5) Single pack NiMH batteries • Standard 110-240V smart charger kit • (2) User manuals • Carrying case |
APB-905400 | Buck Allin™-12 Starter Kit | 3.0 - 12.0 LPM | 120V | • Buck Allin™-2 pump • 3 ft of vinyl hose • Luer hose adapter • Shirt/hose clip • Single pack NiMH battery • Standard 120V charger • User manual |
APB-905450 | Buck Allin™-12 5-Pump Kit | 3.0 - 12.0 LPM | 120V | • (5) Buck Allin™-12 pumps • (5) Pieces of 3 ft of vinyl hose • (5) Luer hose adapters • (5) Shirt/hose clips • (5) Single pack NiMH batteries • Standard 110-240V smart charger kit • (2) User manuals • Carrying case |
APB-905100 | Buck Allin™ Plus-1 Starter Kit | 0.1 - 0.6 LPM | 120V | • Buck Allin™ Plus-1 pump • 3 ft of vinyl hose • Luer hose adapter • Shirt/hose clip • Low Flow Holder • Single pack NiMH battery • Standard 120V charger • User manual |
APB-905150 | Buck Allin™ Plus-1 5-Pump Kit | 0.1 - 0.6 LPM | 120V | • (5) Buck Allin™ Plus-1 pumps • (5) Pieces of 3 ft of vinyl hose • (5) Luer hose adapters • (5) Shirt/hose clips • Low Flow Holder • (5) Single pack NiMH batteries • Standard 110-240V smart charger kit • (2) User manuals • Carrying case |
APB-905300 | Buck Allin™ Plus-5 Starter Kit | 0.8 - 5.0 LPM | 120V | • Buck Allin™ Plus-5 pump • 3 ft of vinyl hose • Luer hose adapter • Shirt/hose clip • Low Flow Holder • Single pack NiMH battery • Standard 120V charger • User manual |
APB-905340 | Buck Allin™ Plus-5 5-Pump Kit | 0.8 - 5.0 LPM | 120V | • (5) Buck Allin™ Plus-5 pumps • (5) Pieces of 3 ft of vinyl hose • (5) Luer hose adapters • (5) Shirt/hose clips • Low Flow Holder • (5) Single pack NiMH batteries • Standard 110-240V smart charger kit • (2) User manuals • Carrying case |
APB-905500 | Buck Allin™ Plus-12 Starter Kit | 3.0 - 12.0 LPM | 120V | • Buck Allin™ Plus-12 pump • 3 ft of vinyl hose • Luer hose adapter • Shirt/hose clip • Low Flow Holder • Single pack NiMH battery • Standard 120V charger • User manual |
APB-905550 | Buck Allin™ Plus-12 5-Pump Kit | 3.0 - 12.0 LPM | 120V | • (5) Buck Allin™ Plus-12 pumps • (5) Pieces of 3 ft of vinyl hose • (5) Luer hose adapters • (5) Shirt/hose clips • Low Flow Holder • (5) Single pack NiMH batteries • Standard 110-240V smart charger kit • (2) User manuals • Carrying case |
APB-109030 | Adjustable Universal Low Flow Holder | 5 - 800 cc/min |
